# 使用cert-manager结合route53实现DNS验证签发Let's Encrypt免费证书

# 部署cert-manager到k8s (opens new window)

kubectl apply -f cert-manager.yaml

备注: cert-manager.yaml

# 验证cert-manager部署成功 (opens new window)

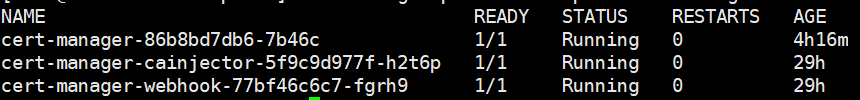

查看cert-manager的组件pod是否正常运行:

kubectl get pods --namespace cert-manager

cert-manager pods

# 配置AWS Route53的角色策略 (opens new window)

此步骤需要了解AWS控制台的使用方法

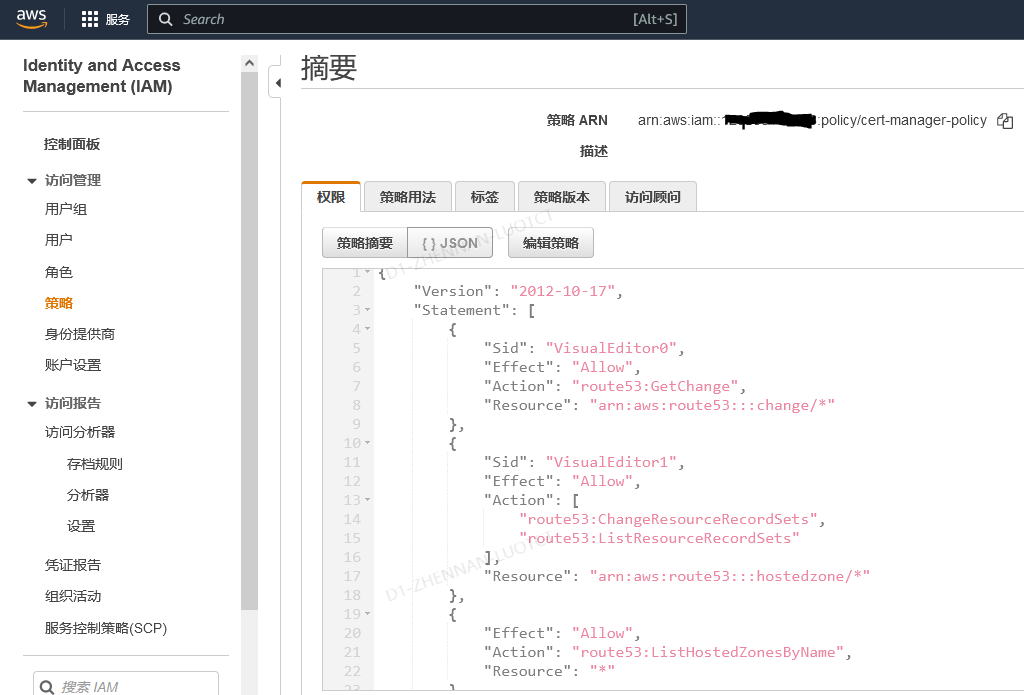

登陆aws控制台创建策略如下图所示:

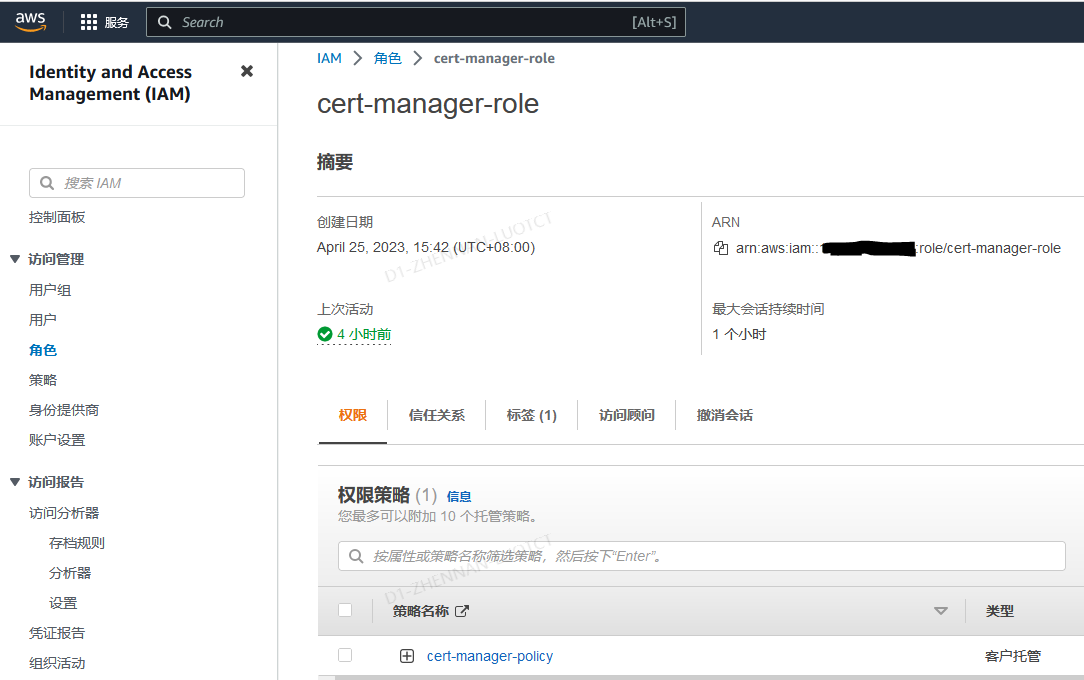

创建cert-manager角色并添加上一步创建的策略权限，如下图所示:

# 配置DNS01验证的证书发行机构 (opens new window)

将aws_secret_access_key保存到k8s的Secret中:

apiVersion: v1
kind: Secret
metadata:
  name: route53-credentials-secret
  namespace: cert-manager
type: Opaque
stringData:
  secret-access-key: <aws secret access key> # 粘贴 aws_secret_access_key 到这里，不需要 base64 加密。

创建Issuer (opens new window)或者ClusterIssuer:

apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: letsencrypt-staging
  namespace: cert-manager
spec:
  acme:
    server: https://acme-staging-v02.api.letsencrypt.org/directory
    email: xxxx.xxx@xxxx.com

    # 定义存储ACME账号私钥的secret名，cert-manager会自己创建它
    privateKeySecretRef:
      name: letsencrypt-staging

    # ACME DNS-01 provider configurations
    solvers:
    # 当 'selector' 为空时表示匹配所有域，'selector:{}'
    - selector:
        dnsZones:
          - "test-domain.com"
      dns01:
        route53:
          region: eu-xxxxx-1
          accessKeyID: aws_access_key_id
          secretAccessKeySecretRef:    # 上一步定义的secret
            name: route53-credentials-secret
            key: secret-access-key
          # AWS的角色定义
          role: arn:aws:iam::xxxxxxxxxxxxxx:role/cert-manager-role

创建Certificate (opens new window):

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: test-domain.com.cert
  namespace: cert-manager
spec:
  dnsNames:
  - test-domain.com # 要签发证书的域名
  issuerRef:
    kind: Issuer
    name: letsencrypt-staging # 引用上一步创建的Issuer，指示采用 dns01 方式进行校验
  secretName: test-domain-com-tls # 最终签发出来的证书会保存在这个名为test-domain-com-tls的Secret 里面

# 查看和使用证书

创建好Certificate后，可以使用kubectl查看是否签发成功:
```
$ kubectl get certificate -n cert-manager
NAME                READY   SECRET                  AGE
test-domain.com.cert   True    test-domain-com-tls   1m
```
如果 READY 为 False 表示失败，可以通过 describe 查看 event 来排查失败原因:
```
kubectl describe certificate -n cert-manager test-domain.com.cert
```
如果为 True 表示签发成功，证书就保存在Secret里 (上面的例子是 cert-manager/test-domain-com-tls)，可以通过 kubectl 查看:
```
kubectl edit  secret test-domain-com-tls -n cert-manager
```
备注: tls.crt 就是证书，tls.key 是密钥

使用证书, 在Ingress中引用secret示例:

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: test-ingress
  annotations:
    kubernetes.io/Ingress.class: nginx
spec:
  rules:
  - host: test-domain.com
    http:
      paths:
      - path: /test-web
        backend:
          serviceName: test-web
          servicePort: 80
  tls:
    hosts:
    - test-domain.com
    secretName: test-domain-com-tls
